Echo Single In-desk Power Module

Echo Single In-desk Power Module

For easy in-desk power with modularity, our Echo Modules are the way to go. These in-desk power modules come in 3 shell sizes; single, duo and trio, describing the number of modules each shell can accommodate. The three types of power module are standard GPOs, a USB option with both USB-A and USB-C fast charging, or wireless fast charging for phones. These are Echo Single In-desk Power Modules, with 3 power module options to choose from. You can also choose between a 3-pin plug which plugs into the wall, or a TAG lead which is used for connecting multiple Danny’s soft wiring modules together in a daisy chain.

The module has a shallow depth of 46mm, with easy top-side installation without fastening from the bottom.

Features:

• Minimalistic design blends into any surface
• Surface installation suited to soft seating and custom joinery
• Fast-charge options include 30W (shared) USB-C PD fast-charging or 15W Wireless fast-charging
• Charging services to be used with IT equipment only.
• Shuttered GPOs
• Lead options for plugging into wall, or for daisy chaining
• Alternative configurations available on request, lead times apply
• Available in Black or White

Configurations:

*items with an asterisk are made to order, associated lead times of 2- 4 weeks

• Single GPO, 500mm TAG lead with L3T splitter

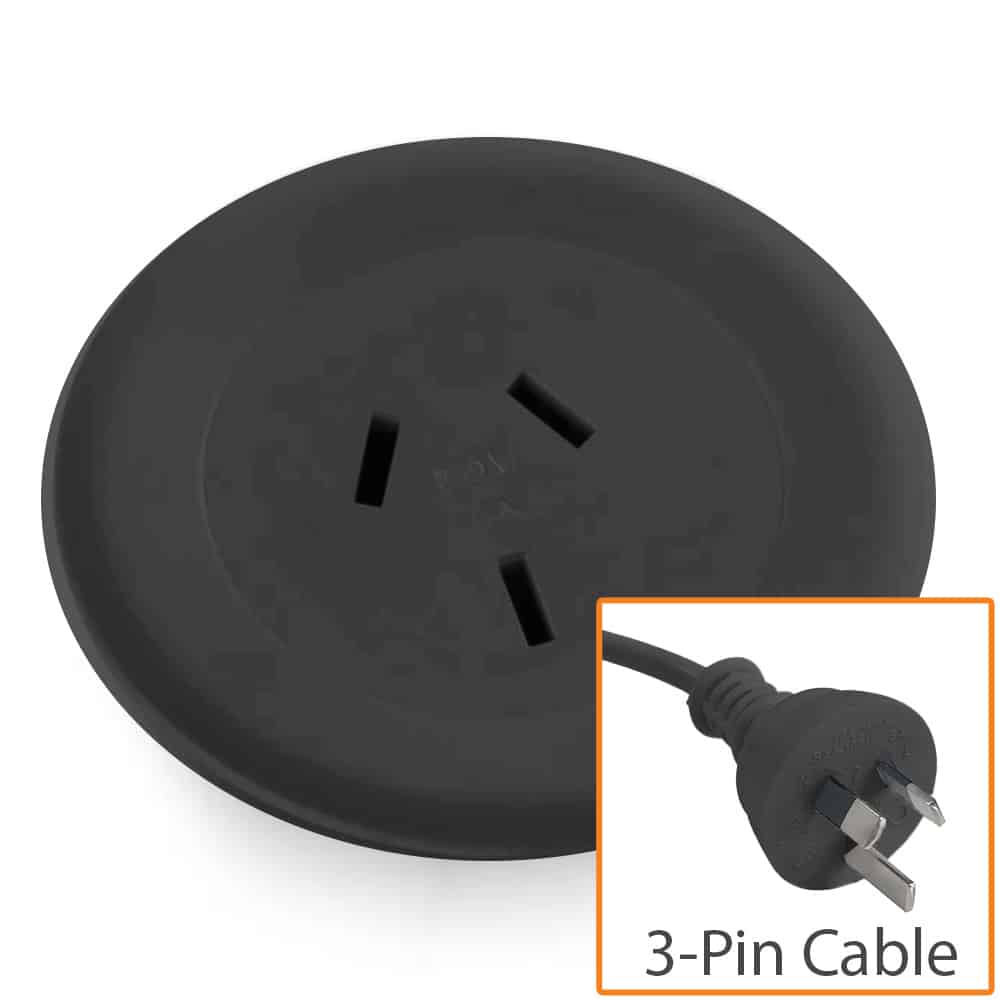

• Single GPO, 1500mm lead with 3-pin Plug
• *Single USB A/C PD fast-charge module, 500mm TAG lead with L3T splitter
• *Single USB A/C PD fast-charge module, 1500mm lead with 3-pin Plug
• Single Wireless fast-charge module, 500mm TAG lead with L3T splitter
• Single Wireless fast-charge module, 1500mm lead with 3-pin Plug

Colour Options:

• White
• Black

Dimensions:

• 70mm Diameter
• Cutout required: 60mm Dia
• TAG lead length: 0.5m
• 3-pin lead length: 1.5m

Other Information:

• Flat pack: Yes
• Local pickup: Case by case, call to check stockholdings
• Min table thickness: 10mm
• Max table thickness: 40mm
• Warranty: 1 year
• Material: Plastic, metal
• Use of cleaning agents: Please ensure cleaning agents are compatible for use on moulded polycarbonate surfaces. Should any sign of degradation, cracking or discolouration be present or occur, immediately discontinue the use of the cleaning agent
• Specsheet

Please note:

• TAG lead is compatible with Danny’s or CMS branded soft wiring
• Black images illustrative only
• Some product variations are made to order, associated lead times of 2- 4 weeks
• All electrical cabling and connections must be completed by clients own licensed electrician
• Basic tools are required to assemble our furniture, particularly to attach desk tops and table tops. We offer an assembly service, please contact us for a quote if required
• Electrical soft wiring may be required, sold separately
• Our wireless chargers are for mobile phones only, other accessories including airpods & watches may not be supported
• Our Echo Series USB A/C Fast Charging Module has a built-in feature where it will shut down when not used for a while to save power. To use the USB A/C module again, unplug your USB cable and reinsert it
