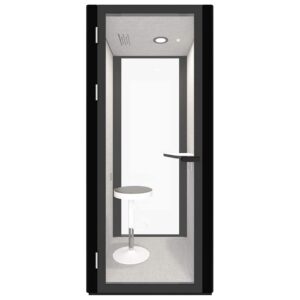

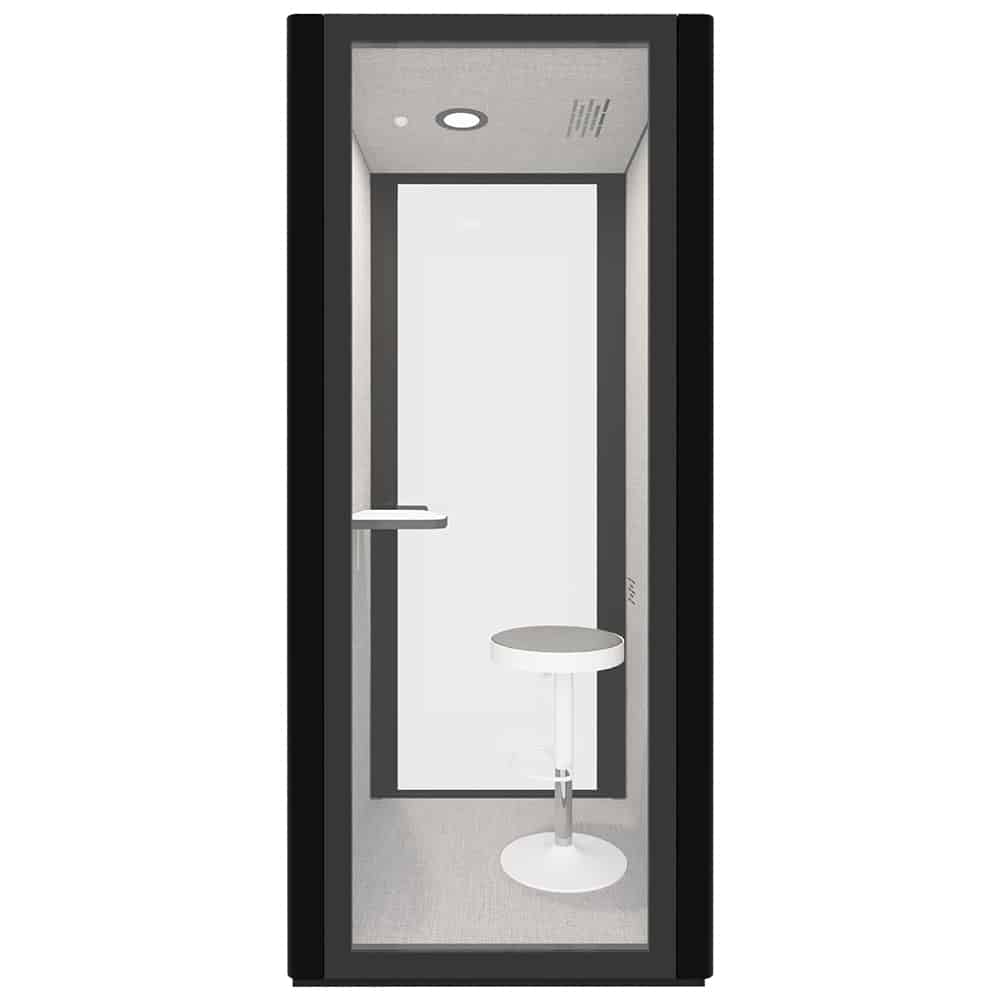

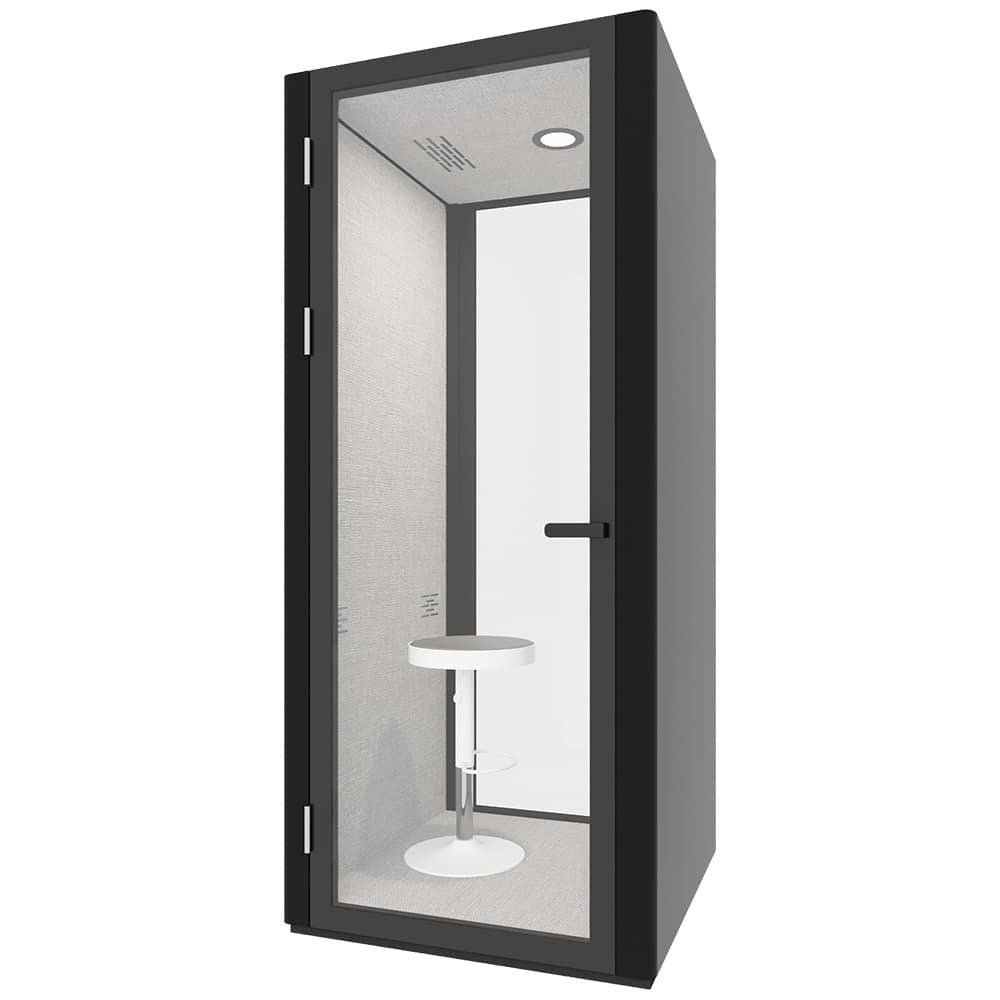

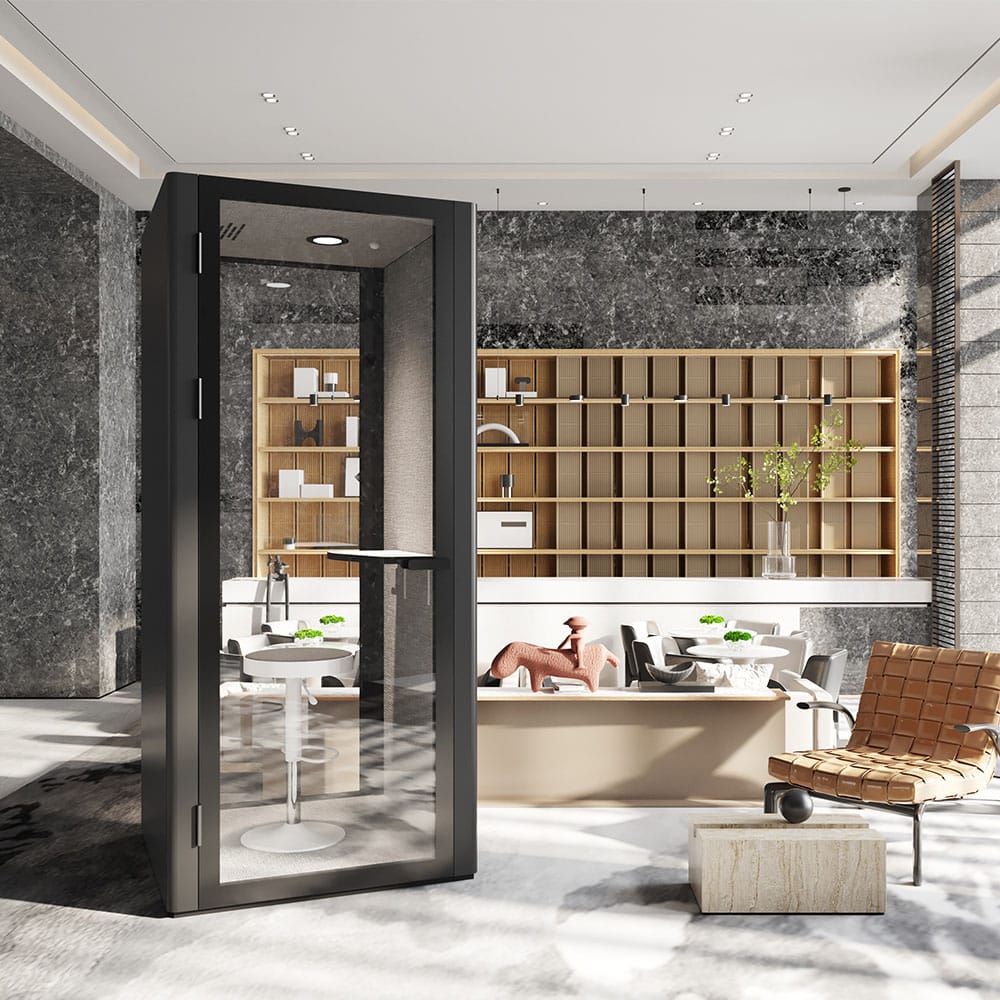

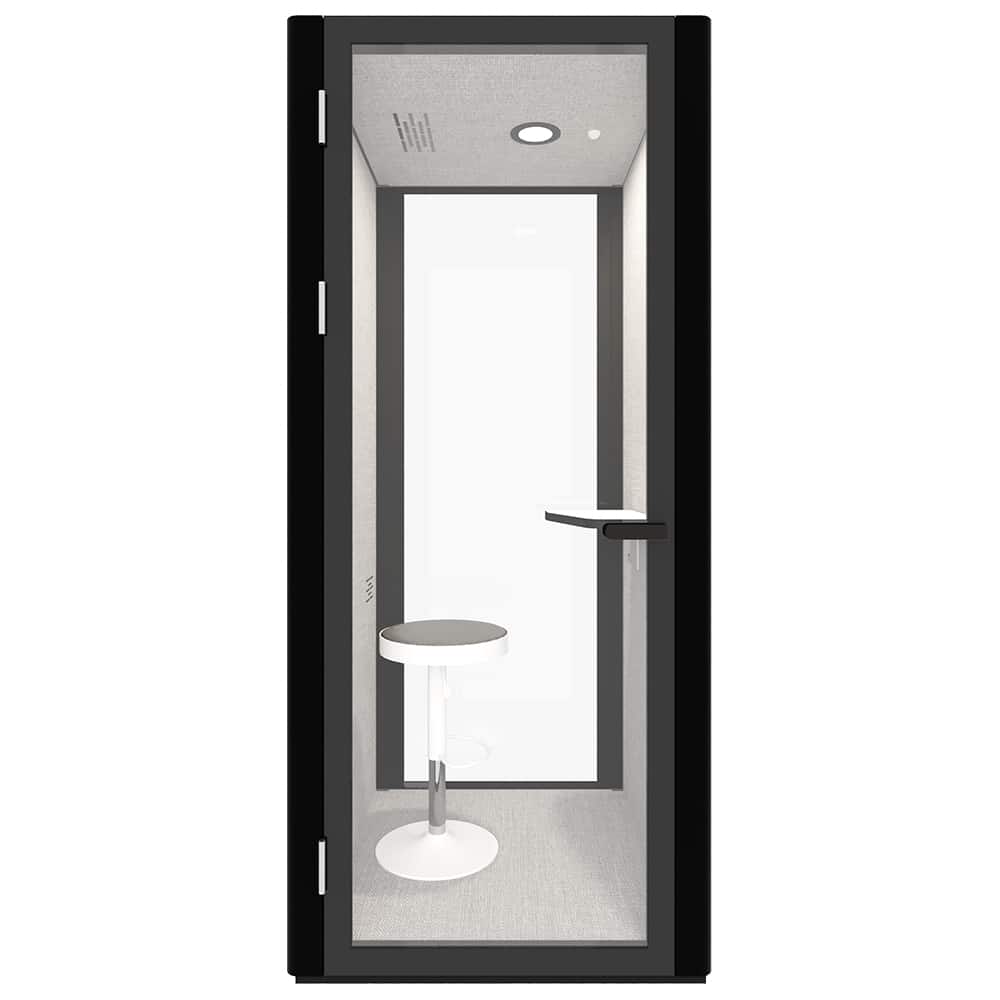

Tranquil Single Acoustic Booth

Tranquil Single Acoustic Booth

The Tranquil Single Acoustic Booth is the perfect solution for providing privacy and confidentiality in today’s modern open plan office. This mobile single pod is the perfect way to provide your employee’s with a space to keep unwanted sound out and conversations private. This is the perfect place to take phone calls, host video calls and stay undistracted without disturbing others or needing to move to another building.

The acoustic qualities of this pod are premium, resulting in a noise reduction of up to 30db. This is achieved by multiple layers of sound dampening and echo preventing acoustic solutions, such as egg crate acoustic foam which is often used in recording studios to reduce echo and reverberation. The chassis has acoustic elements in a sandwich design with an array of fire-safe acoustic materials, and the entire interior is lined with sound absorbing compression panels.

Not only is this pod portable, but also quick to assemble. Fitted with heavy duty castors  for easy relocation, it also has leveling feet which can be activated once the castors are retracted. It is also easier to put together than other similar products, as it is made from prefabricated modules which can easily be installed by a small crew in a few hours.

Designed to add flexibility to a workplace setting, these are well equipped to provide a comfortable working experience. Inside, there is a door triggered sensor light in-built to the ceiling, as well as 2 ventilation fans which bring in fresh air every 1.2 minutes. There is also an in-built working surface, a stool included, and a dual powerpoint with USB-A & C charging, so your employees have everything they need at their fingertips.

Custom order colours and sizes are also available with an 8-10 weeks lead time. See the mini catalogue for available options.

Key Features:

• Keep private conversations private
• Portable acoustic booth for silent zones
• Heavy duty construction
• Lined with ECO panel for echo and acoustic reduction
• Egg crate acoustic foam for strong noise reduction and echo prevention
• Fitted with LED light on the ceiling
• LED light activated by internal sensor
• Wall mounted table
• German doorware
• Anti-static and stain resistant low loop pile carpet
• 10mm saftey glass with aluminium frame
• Powered ventilation fans for airflow, triggered by door sensor
• Speech level reduction of 30DB
• Built-in double powerpoint with USB-A&C chargers
• Made from eco-friendly materials
• Fitted with heavy duty castors for portability
• Wheels can be retracted and replaced with leveling feet once stationary
• Stool included
• Stocked product, lead time 2-4 weeks
• Available in black only, other colours available upon request with extended lead times

Colour Information:

• Exterior finish: Black powdercoat
• Interior finish: GP18 Dark grey ECO panel
• Table top finish: Black melamine
• Carpet finish: Dark grey

Sizing Information (mm):

• Overall size: 2200mm H x 1030mm W x 1030mm D
• Internal size: 2080mm H x 910mm W x 930mm D
• Wall mounted table: 500mm W x 280-200mm D (tapered) x 25mm H
• Doorway width: 840mm

Materials:

• Door: German doorware, 3 x Heavy Duty Stainless Steel Hinges, 45mm hidden frame glass door
• Glass: 10mm safety glass to rear & 6mm safety glass to door – finished with black silkscreen print, black powdercoat with aluminium frame
• Floor: Anti-static and stain resistance low loop pile carpet

Other Information:

• Mini Catalouge
• Specsheet
• Noise reduction: Up to 30db
• Air replacement: Every 1.2 minutes (total air flow: 1340L/min)
• Power consumption: 10W; 4W light, 6W fans
• Power outlets: 10Amp double internal powerpoint with USB A + USB C charger in matte black
• Power outlet details: Hager Allure WBHP2SUSBAC-MB
• Weight (Assembled): 310kgs
• Warranty: 5 Years
